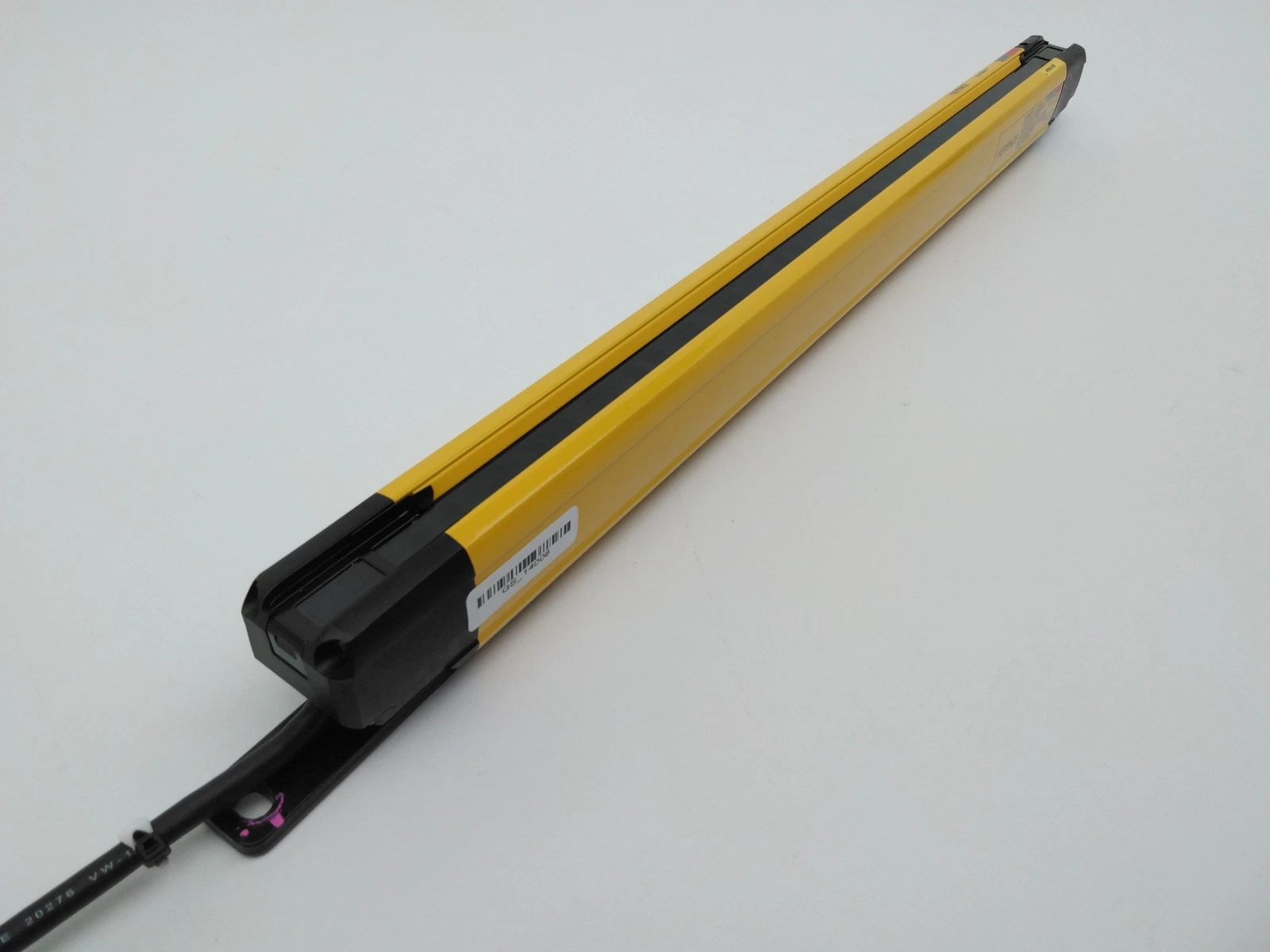

Keyence GL-R12L-T Safety Light Curtain Transmitter

Caractéristiques main techniques
Number of options: 12

Diameter of lentils: 5 mm

Optical ax space: 40 mm

Detection height: 440 mm

Height of protection: 525 mm

Total length: 480 mm

Detection distance: 0.2 to 15 m

Angle d’ouverture effectif: ±2.5° (for a function distance of 3 m)

Source lumineuse: LED infrarouge (870 nm)

Response time (OSSD):

ON → OFF: 6.6 ms

OFF → ON: 48.7 ms

Tous blocks → ON: 63,1 ms

Detection Mode: When an obstacle occurs, there is no obstacle in the detection zone.

Synchronization: Option or filter (determined by the cover)

Order type (OSSD): 2 transistor types (PNP or NPN, using the cable type)

Supplementary order (non-liée to the security): Sorties transistor (PNP or NPN, using the cable type)

External entries: Enter EDM, mise en attente, réinitialisation, inhibition 1 et 2, commande manuelle

Electrical adjustment: 24 Vcc ±20%

Consumption of currency (max.):

Transmitter: 46 mA

Receiver: 70 mA

Environmental protection: IP65/IP67

Security norms: CEI 61496-1, EN 61496-1, UL 61496-1 (ESPE Type 4), CEI 61508 (SIL3), EN ISO 13849-1
