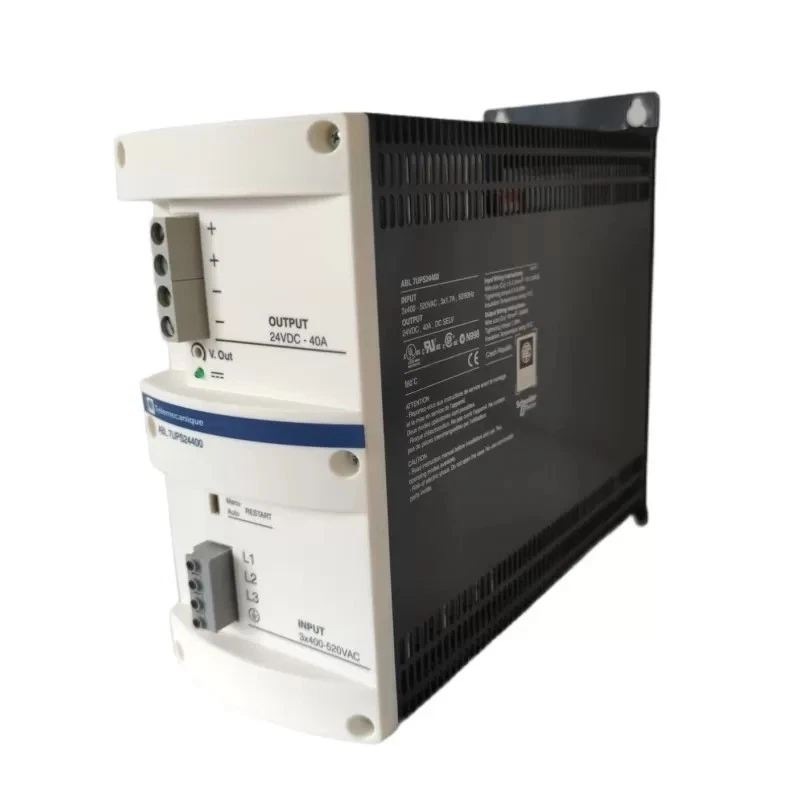

Schneider abl7ups24400 modulo alimentatore 3ph 40a in 3×400//520vac out 24vdc 960w – Nuovo senza imballo originale

Description:
The ABL7UPS24400 is a switching power supply from the Phaseo range by Schneider Electric / Telemecanique, designed to convert a three-phase input voltage (400–520 V AC) to stabilized 24 V DC. It is ideal for demanding industrial applications, such as automation systems, production machinery, and control/monitoring installations.

Main Features:
Input Voltage:
Three-phase 3 × 400 to 520 V AC, 50/60 Hz

Output Voltage:
24 V DC ±3%

Output Current:
20 A (or 480 W max)

Technology:
Switching power supply, high energy efficiency

Cooling:
Natural convection (fanless)

Operation Indicator:
LED indicator for output voltage status

Mechanical Specifications:
Dimensions (H × W × D):
145 × 125 × 86 mm

Weight:
Approx. 1.2 kg

Mounting:
DIN rail or panel mounting

Protection Rating:
IP20 (for use in electrical cabinets)

Safety and Compliance:
Built-in Protection:

Short-circuit protection

Overload and Overvoltage

High Temperature

Standards and Certifications:

CE, UL, CSA, EN/IEC 60950-1, EN 61204-3 (EMC)

RoHS Compliant
