TELESIS PINSTAMP TMP-1700 PINSTAMP MARKING HEAD TMP1700

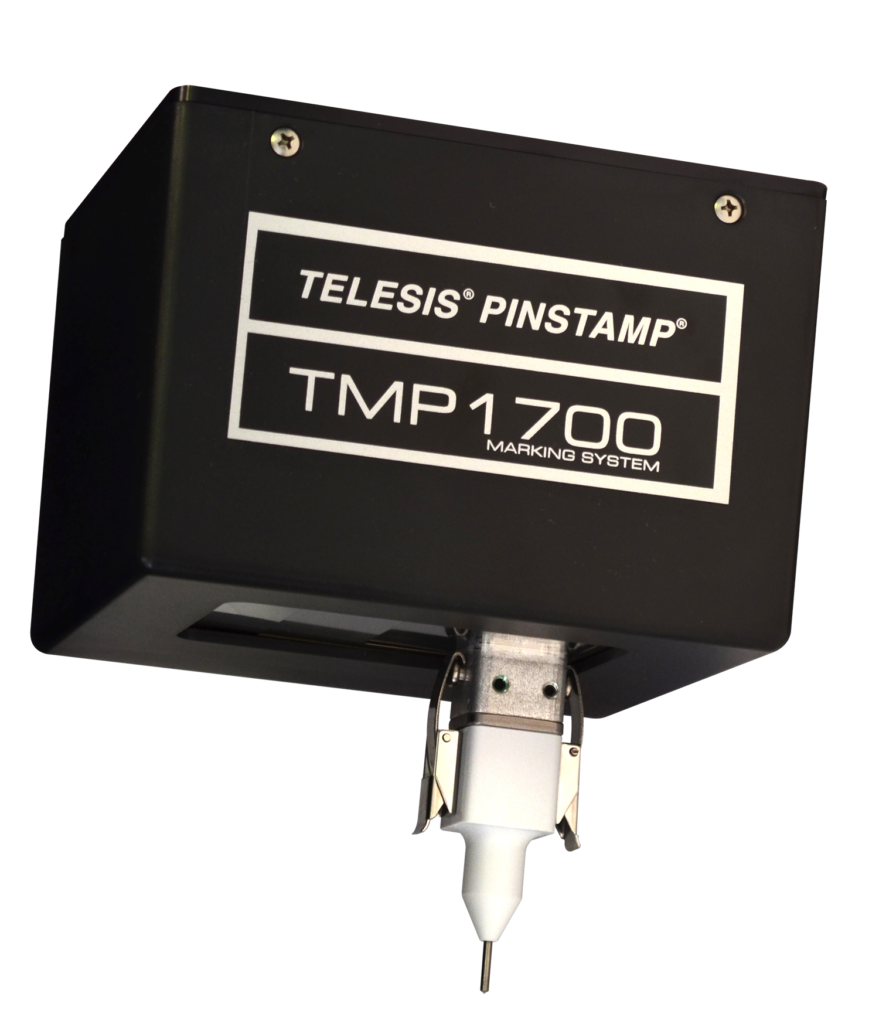

The TMP-1700 is a PINSTAMP® marking head from Telesis Technologies, designed for permanent dot peen marking. Compact, fast, and reliable, it is ideal for industrial applications requiring durable identification, such as serial numbers, date/time codes, or logos. Key Technical Specifications:
Marking Method: Micro-percussion (controlled pneumatic impact)

Marking Area: 38.1 mm x 63.5 mm (1.5″ x 2.5″)

Supported Materials: Plastic, aluminum, steel (up to 60 HRC)

Marking Speed: Up to 6 characters/second (depending on density)

Marking Depth: From 0.03 mm to 0.33 mm

Technology: Floating Z axis – allows for surface irregularities up to 6 mm

Advanced Features (with TMC520 or TMC470 controller):
Automatic numbering (series, batches)

Automatic insertion of date, time, and shift codes

Customizable Fonts

Logo Marking (with Merlin® software)

Network Connection (via Ethernet, RS-232, etc.)

Mechanical Data:
Head Dimensions: Approx. 168 mm (W) x 158 mm (H) x 120 mm (D)

Weight: ≈ 2.9 kg

Required Compressed Air:

Standby: 0.04 SCFM

Operating: 0.6 SCFM @ 60–90 psi (4–6 bar)

Operating Temperature: 0 to 50 °C

Protection Rating: Standard IP (to be confirmed depending on version)

Options and Accessories:
Motorized Z-axis Holder

Rotating Chuck for Cylindrical Parts

Advanced Design Software (Merlin® III)

PLC/API Interface

Typical Applications:
Mechanical or Automotive Part Identification

Aeronautical or Railway Traceability

Marking of Tooling, Nameplates, or Electronic Components
